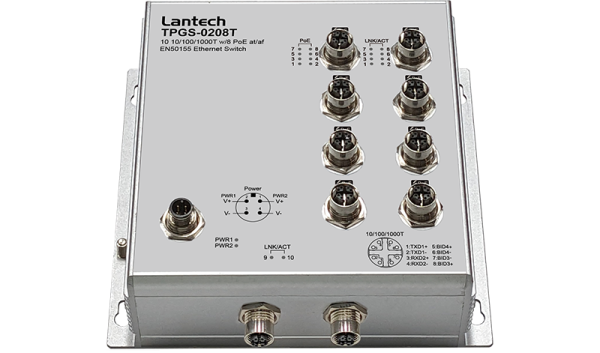

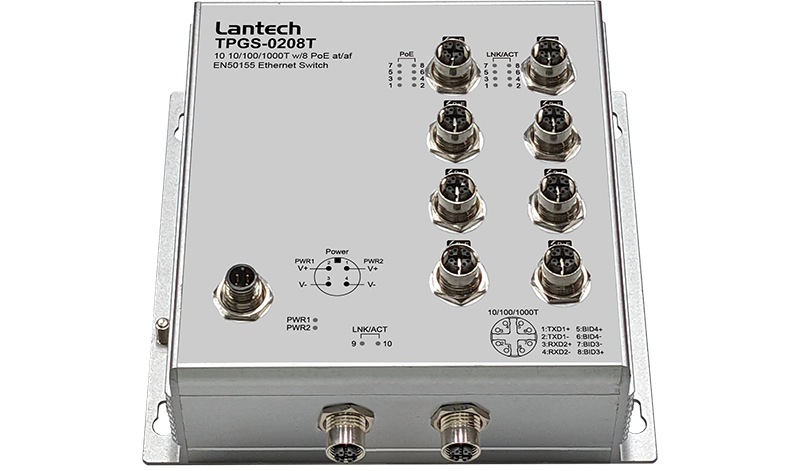

Lantech TPGS-0208T-8-54-24VI (IGN) Industrial PoE Unmanaged EN50155 Switch12/24V
10 10/100/1000T X-coded M12 IP54 rated EN50155 Unmanaged Ethernet Switch w/8 PoE at/af; -40°C to 75°C; 9~36VDC dual input w/ PoE & Ethernet galvanic isolation; w/ignition; 24VI / 48TVI input, Operating Temperature -40 to 75°C, with M12 Connectors,
Compare
- IP54 Protection Aluminum housing for best heat dissipation and preventing moist ingress
- EN50155/50121-4/EN61373 and EN45545-2 Fire & Smoke verification
- E-marking certificate for vehicle application
- Provides M12 connector
- Galvanic PoE isolation; Support IEEE802.3at/af up to 30W per port; PoE budget 80W
- Dual 9~36VDC input selection
- ISO16750-2 P5A compliant
- Power-saving PoE configuration when ignition is enabled
- Inrush current prevention; polarity reverse protection
- Optional copper bypass in case of power failure (one pair)
- Wide Operating Temperature from -40°C to 75°C
| Weight | 0.7 kg |
|---|---|
| Dimensions | 18.2 × 7.65 × 17.9 cm |
| Brand | |
| Switch Layer | |
| Total Number of LAN Ports? | |
| Number of Copper 1G LAN Ports? | |
| How Many of Copper Ports Are PoE? | |
| Installation | |
| Operating Temperature | |
| Input Voltage | |
| Redundant Power Input | |
| IP Rate (Protection Against Dust, Water,...) | |
| Industrial Standards | Anti-Shock, Anti-Vibration, E-MARK, EMI, Fire & Smoke Safety, Free Fall Resistance, M12 Connector |
