Lantech TPES-L5208MGTA switch
Lantech TPES-L5208MGTA switch
Lantech TPES-L5208MGTA switch
Lantech TPES-L5208MGTA switch
, ,

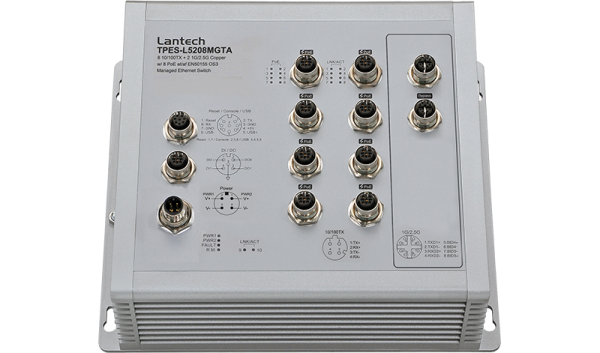

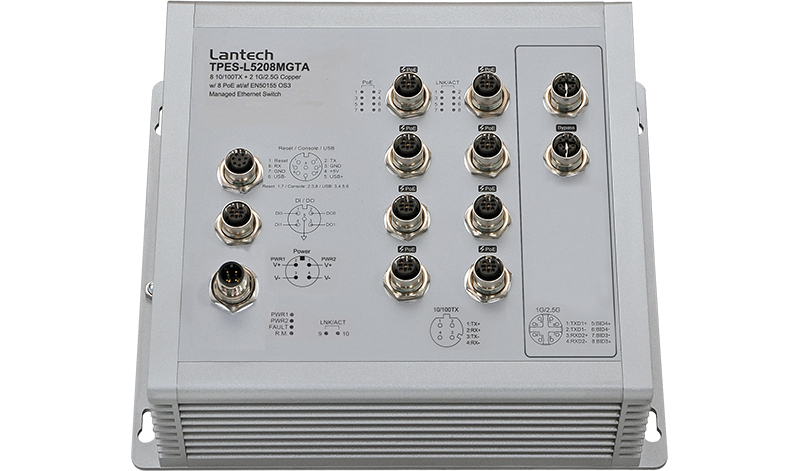

Lantech TES-L5208MGTA-54-24VI Industrial Managed EN50155 Switch 12/24V

Lantech
Add to Wishlist
Compare

8 FE + 2 1G/2.5G Copper (w/8 PoE) EN50155 OS3 Upgradable Layer 3 Managed Ethernet Switch with Conformal Coating; 24/48V input, Operating Temperature -40 to 70°C, with M12 Connectors,

Download Datasheet
Download Software Datasheet
Dwonload Hardware Manual

$2,350 Ex VAT

Compare
Add to quote
  • IP54 Protection

  • Best switch for railway on-board/track side, vehicle, and mining applications.

  • Dual  24VI / 24TVI input with max PoE budget and Inrush current protection
  • Lantech OS3 Platform with complete L2 management and upgradable optional L3 & communication protocols
  • Enhanced cybersecurity features with IEC 62443-4-1 certification
  • Miss-wiring avoidance, node failure protection, Loop protection

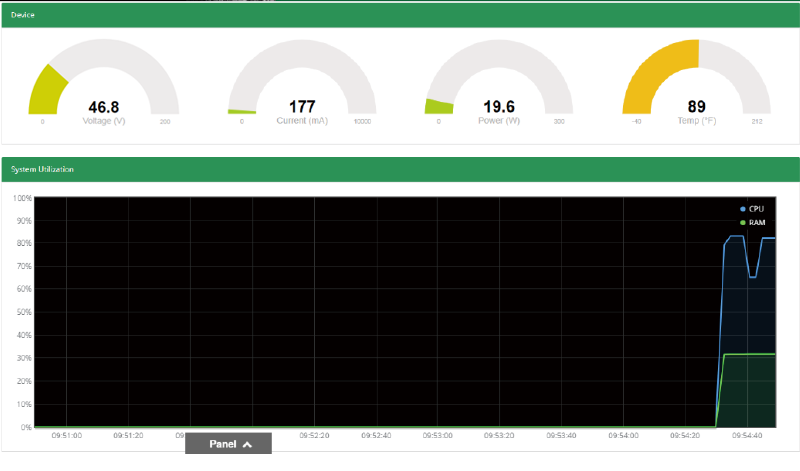

  • User friendly GUI, Auto topology drawing, Enhanced Environmental Monitoring
  • Built-in IEC 61375-3-4 ECN (Ethernet Consist Network) to work with IEC61375-2-5 TBN
  • Editable configuration file; USB port for import/export configuration
  • Real-Time Clock for precise time
  • Event log & message; 2DI + 2DO; Factory default pin
  • Optional smart bypass protection on dual 1G/2.5G copper ports. For one pair bypass add –BT to model name
  • EN50155, EN45545-2; EN61373 compliance; Rugged design with high ESD protection
  • supports wide operating temperature from -40°C to 70°C (85°C operation for 10min), which is compliant with the EN50155 Operating Temperature Range Requirement Class OT4.
Categories: , , Tag:
Weight 2.65 kg
Dimensions 23.5 × 9 × 19.5 cm
Brand

Switch Layer

,

Total Number of LAN Ports?

Number of Copper 1G LAN Ports?

How Many of Copper Ports Are PoE?

Installation

Operating Temperature

Input Voltage

,

Redundant Power Input

IP Rate (Protection Against Dust, Water,...)

Environmental information of the device is monitored?

Industrial Standards

, , , , ,
