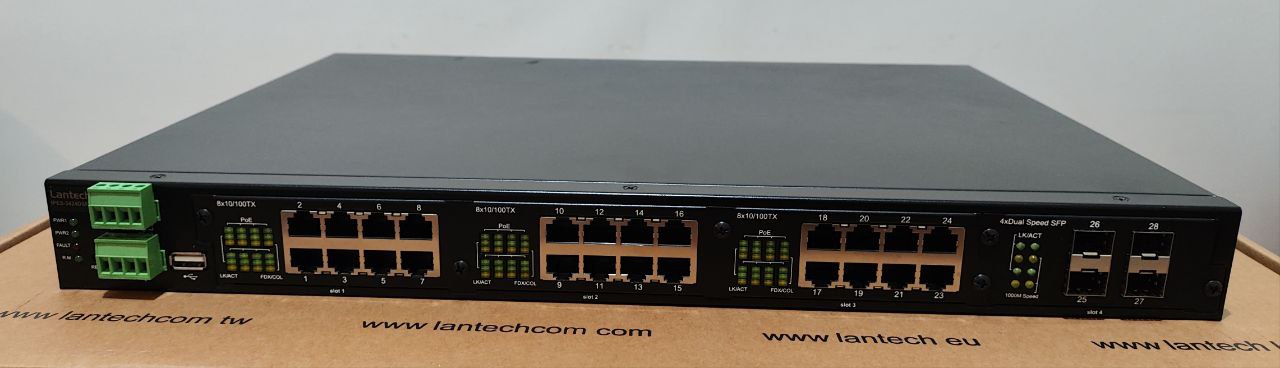

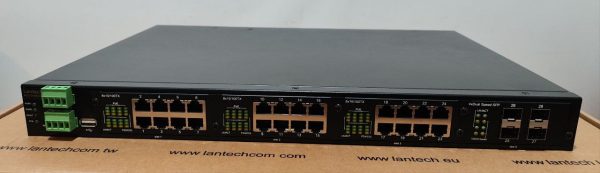

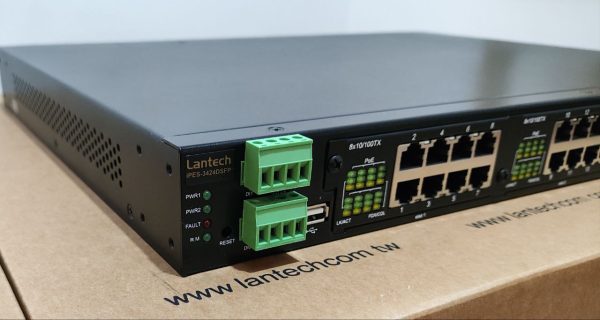

Lantech IPES-3424DSFP-2P Industrial Managed PoE Switch 12/24/48V
24 10/100TX PoE at + 4 Dual Speed SFP L2+ Industrial Managed Switch, -40°C~70°C Max. Operating Temperature, Built-in 1x Isolated DC 12~56VDC and 1x 48VDC for PoE Power Input
+1x Optional Power Socket for System Redundant Power Input
Compare
- High-density 10/100TX L2+ managed PoE at/af switch
- Support dual power redundancy DC
- Enhanced G.8032 ring protection < 20ms for single ring. Supports auto mode, enhanced mode, train mode and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP; support MRP ring
- Supports PoE management
- Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3,TACACS+**, QinQ
- Protocol based VLAN ; IPv4 Subnet based VLAN
- Miss-wiring avoidance & Node failure protection
- User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***, Complete CLI supported
- USB slot for edited restoration and auto backup
- This Switch has two power inputs; one for the system and one for PoE Budget , The input power of PoE of IPES-3424DSFP-2P (power input 3) is separated with
power of switch system, in addition third power input can be bought and be used optionally for system redundant power.
| Weight | 3.2 kg |
|---|---|
| Dimensions | 44 × 25.5 × 4.4 cm |
| Brand | |
| Switch Layer | |
| Total Number of LAN Ports? | |
| Number of Copper 1G LAN Ports? | |
| How Many of Copper Ports Are PoE? | |
| Number of SFP 1G LAN Ports? | |
| Installation | |
| Input Voltage | |
| Redundant Power Input | |
| Operating Temperature | |
| IP Rate (Protection Against Dust, Water,...) | |
| Industrial Standards |
